EazyRiderz

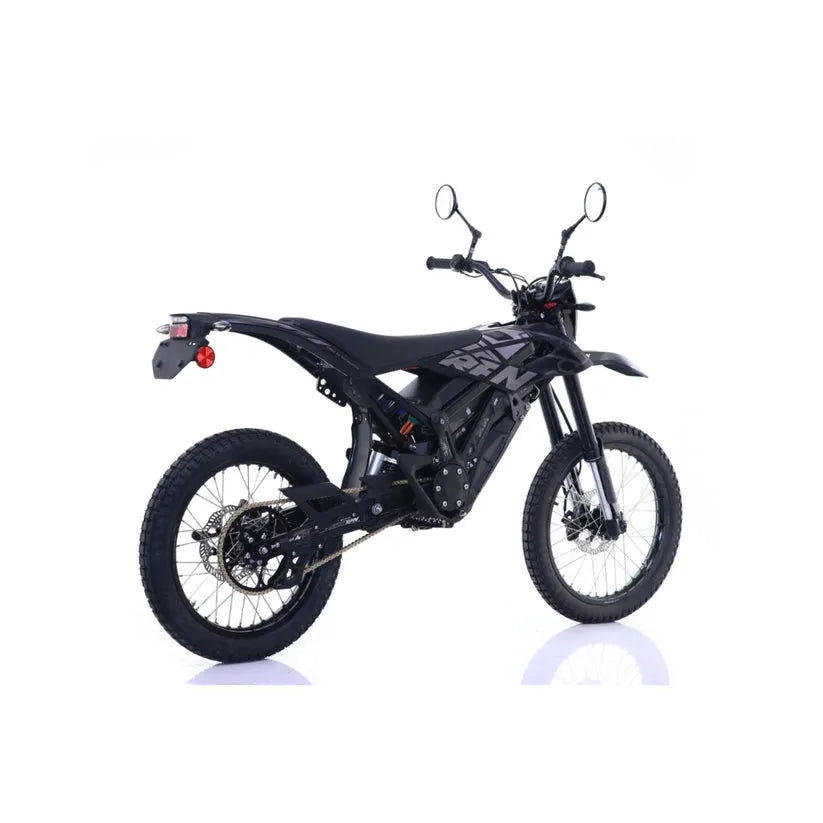

RFN RS L1E MK3 (AVAILABLE TO PRE-ORDER SEE IN STORE FOR DETAILS)

RFN RS L1E MK3 (AVAILABLE TO PRE-ORDER SEE IN STORE FOR DETAILS)

Regular price £4,599.99 GBP
Regular price Sale price £4,599.99 GBP
Sale Sold out
Taxes included.
View full details

Product Description

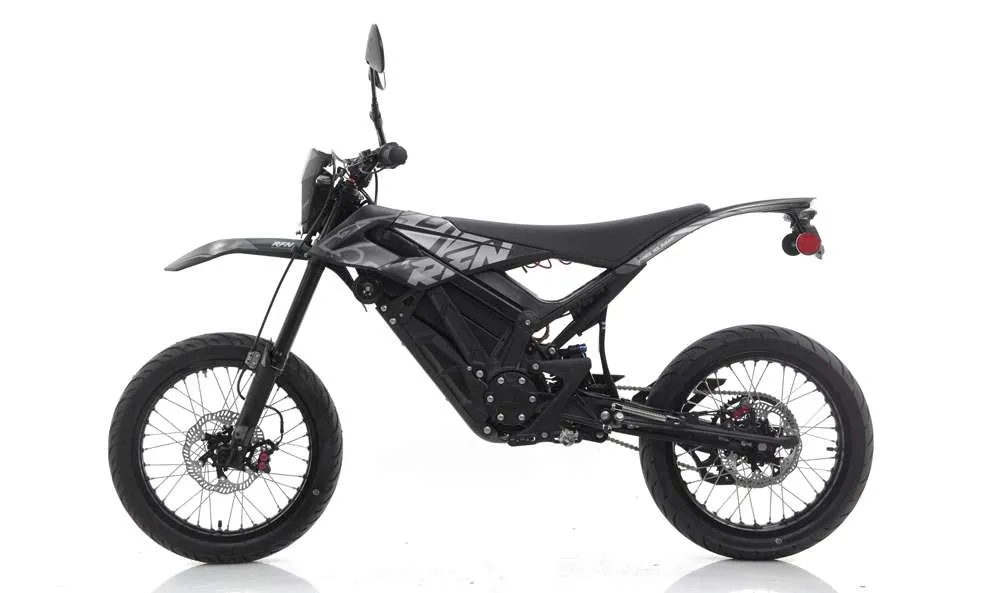

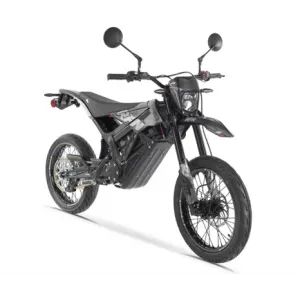

Introducing the RFN RS Road: Where Street Meets Adventure. Prepare for an electrifying journey on the RFN RS Road, with the power of RFN Rally Pro now available in a street-legal version.

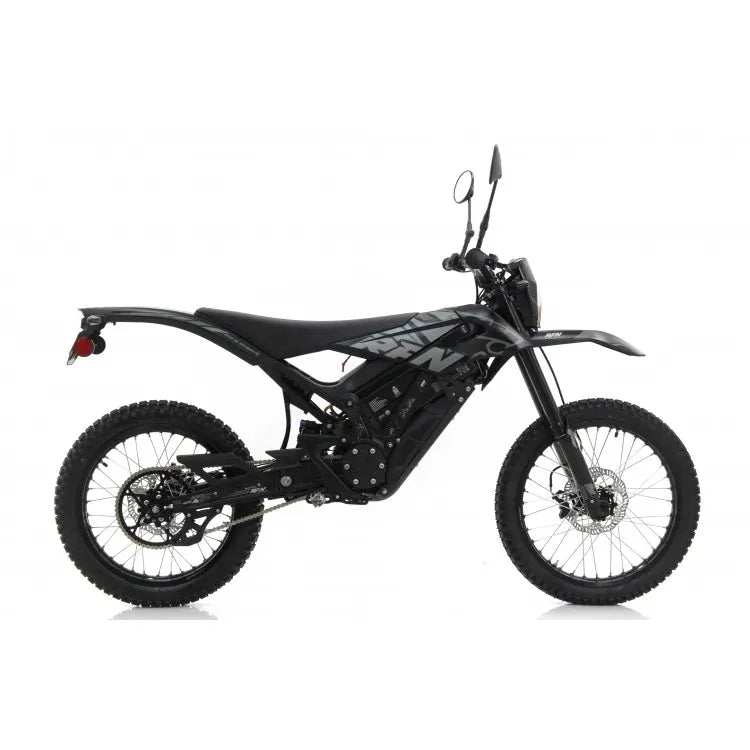

Available as either RS Endurance L1E equipped with trial tyres or RS Road L1E equipped with supermoto tyres.

Unleash the Power of Freedom

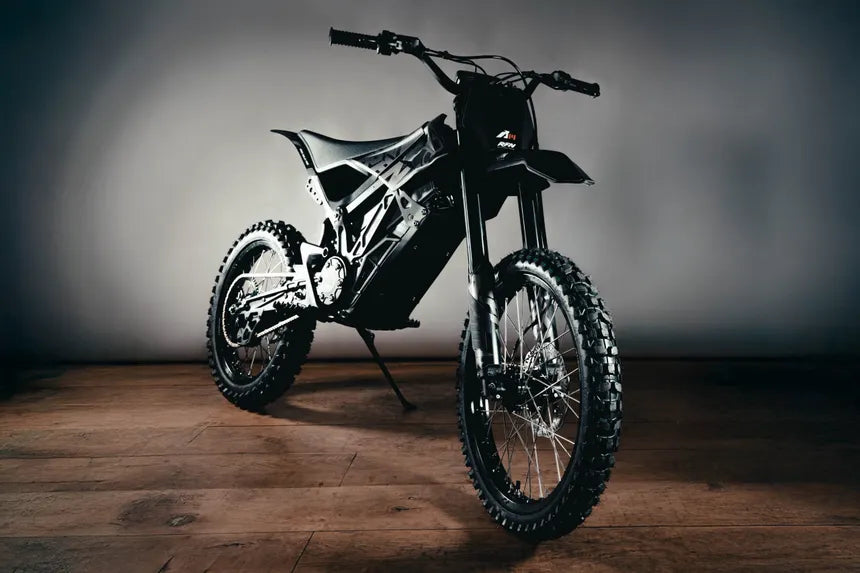

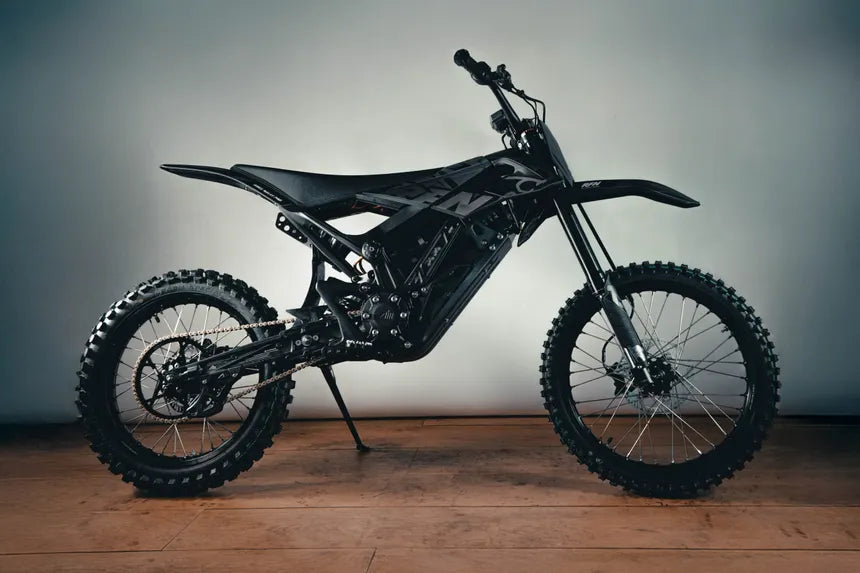

RFN Dual Purpose Electric Dirt Bike

Are you a thrill-seeker looking for the ultimate off-road adventure? Look no further than the RFN Electric Dirt Bike. With its impressive power output of 12.5 kW, max torque of 270 N.m, and range of up to 100 mi, this electric motorcycle is built to handle even the toughest off-road conditions. Our dual-purpose system lets you seamlessly switch between mx off-road and trials modes in just 5 seconds. Featuring four innovative driving modes, and a patented one-piece seat unit the Rally Pro is designed for both comfort and performance. Weighing in at just 68 kg, its exceptional power to weight ratio allows easy handling through any terrain.

Experience the power of new generation technology and unleash your adventurous spirit.

Specification

Battery
74V 43 / 3182 Wh, LG Premium 21700 lithium cells, removable, can be charged in or out of the bike.
Brakes
Front and Rear 4-piston calipers, using DOT 4 fluid and 210 mm x 2.3mm discs
Charging
3 hours charge time. (10A charging. From 0-100%)
Controller
Sine wave, Best-in-class power density and state-of-the-art motor control algorithms.
Waterproof
IP67

Drivetrain

Electric motor
Air cooled 3-Phase PMSM (Permanent Magnet Synchronous Motor) motor, Regeneration as standard, Direct Drive, 13T Front Sprocket, 420 chain.
Sprocket
58T
Rated power
4 kW
Peak power
4 kW
Max Torque of motor
46 N·m
Max Torque of rear wheel
242 N.m

Dimensions

Fork angle
24 °
Ground clearence
300 mm
Offset
15mm at the triple clamps, 45 mm at the axle.
Seat height
835 mm
Trail
111 mm
Wheel base
1330 mm

Bodywork

Fenders & Bodywork
PP/ABS plastic
Frame
6082 aluminum extruded, forged, CNC machined and steel frame.
Front suspension
Upside Down, 200 mm travel, Fully adjustable
Handlebar
High rise 6061 aluminium, 760 mm length
Rear suspension
240mm x 74 mm travel. Adjustable compression, rebound and preload.
Regulatory Cetificate
CE EEC

Ride modes

Mode 1
Tortoise mode: Limited to 15 mph with 3.5h battery range.
Mode 2
Rabbit mode: Standard 5kw output, 1-2 h riding time.
Mode 3
Rocket mode: 60 seconds of 12.5Kw output. 1 hour riding time.
Mode 4
Reverse mode: Limited to 6 mph.

Speed & Range

Range
112 mi (Test data Load: 75 kg, 12.5 mph uniform speed, ambient temperature: 25 °C, flat pavement, standard tyres, standard tyre pressure)
Top speed
28 mph *Restricted for L1E Homologation (depending on gearing and conditions) STD 11/58T

Weight

Net weight of Battery
15 kg
Net weight of whole bike (Including Battery)
76 kg
Maximum load
120 kg
