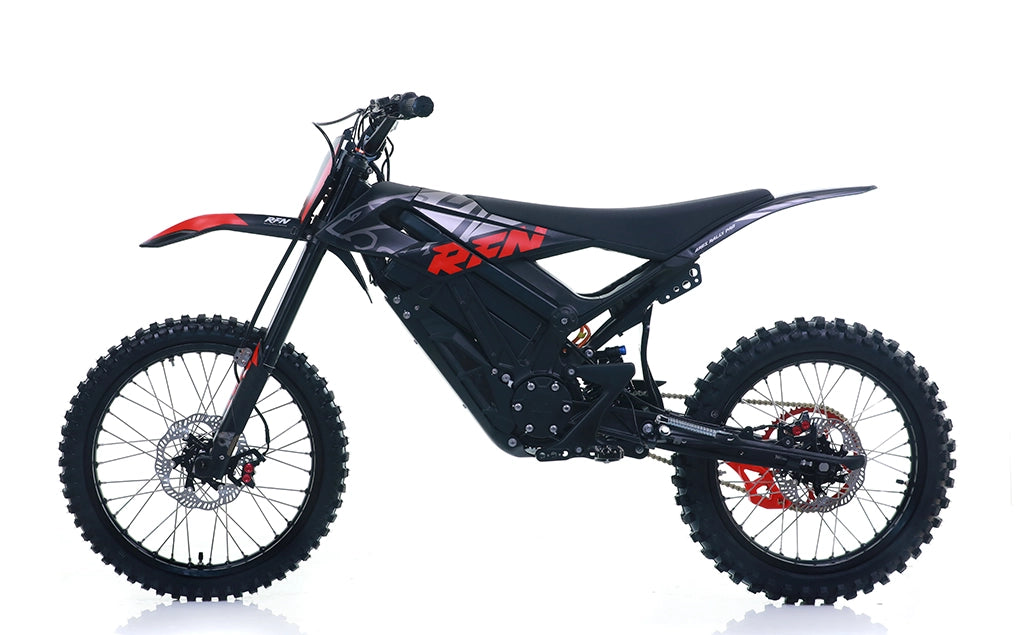

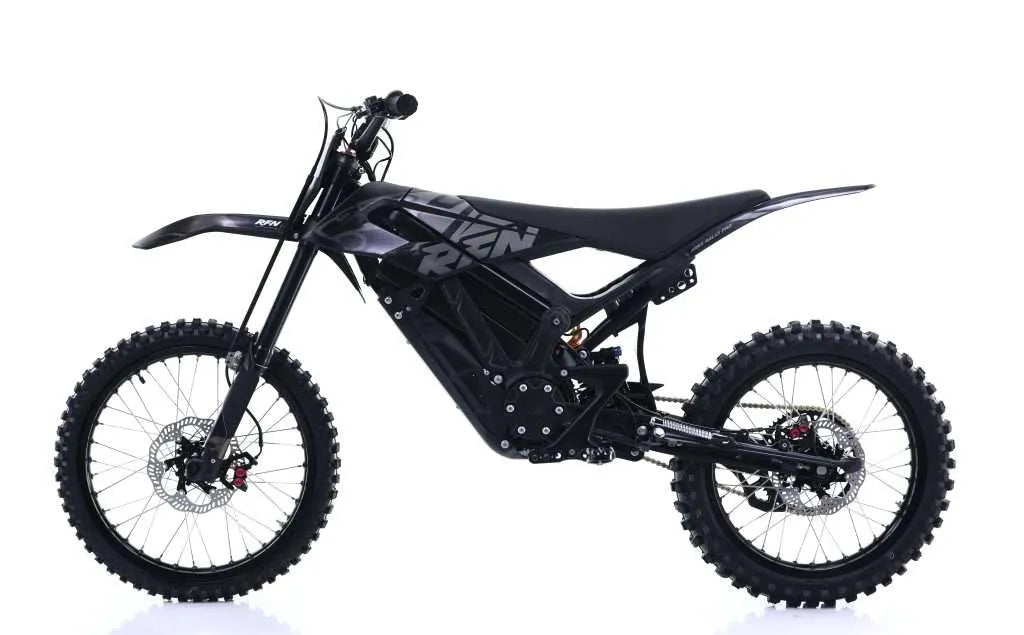

RFN Rally Pro
RFN Rally Pro
Regular price
£4,499.99 GBP
Regular price
Sale price
£4,499.99 GBP
Unit price
/
per
IGNORE LOW AND NO STOCK COUNT IN STORE SALE ONLY
NEW ARRIVAL!!!!
RFN Rally Pro: The ultimate off-road adventure bike. A powerful adventure bike with long-travel suspension and rally-inspired features, this bike is ready to tackle any terrain.
RANGE 100 mi (MAX)
PEAK POWER 12.5 kW
KERB WEIGHT 68kg
BATTERY 43 Ah
SHOCK ABSORBERS 200 mm
Maximum torque 270 N.m
Specification
Battery
74V 43Ah / 2590 Kwh, LG Premium 21700 lithium cells, can be removed to charge in or out of the bike.
Brakes
Front and Rear 4-piston calipers, using DOT 4 fluid and 210 mm x 2.3mm floating discs.
Charging
3 hours charge time. (10A charging. From 0-100%)
Controller
Sine wave, Best-in-class power density and state-of-the-art motor control algorithms.
Waterproof
IP67
Drivetrain
Electric Motor
Air cooled 3-Phase PMSM (Permanent Magnet Synchronous Motor) motor, Regeneration as standard, Direct Drive, 13T Front Sprocket, 420 chain.
Sprocket
58T
Rated power
5 kW
Peak power
12.5 kW
Max Torque of motor
58 N·m
Max Torque of rear wheel
270 N.m
Dimensions
Fork angle
24 °
Ground clearence
340 mm
Offset
15mm at the triple clamps, 45 mm at the axle.
Seat height
860 mm
Trail
111 mm
Wheel base
1330 mm
Bodywork
Fenders & Bodywork
PP/ABS plastic
Frame
6082 aluminum extruded, forged, CNC machined and steel frame.
Front suspension
Upside Down, 200 mm travel, Fully adjustable
Handlebar
High rise 6061 aluminium, 22mm width, 760mm length
Rear suspension
240mm x 74 mm travel. Adjustable compression, rebound and preload.
Regulatory Cetificate
CE
Ride modes
Mode 1
Tortoise mode: Limited to 15 mph with 3.5h battery range.
Mode 2
Rabbit mode: Standard 5kw output, 1-2 h riding time.
Mode 3
Rocket mode: 60 seconds of 12.5Kw output. 1 hour riding time.
Mode 4
Reverse mode: Limited to 6 mph
Speed & Range
Range
100 mi (Test data Load: 75 Kg, 12.5 mph uniform speed, ambient temperature: 25 °C, flat pavement, standard tyres, standard tyre pressure)
Top speed
60 mph (depending on gearing and conditions)
Weight
Net weight of Battery
15 kg
Net weight of whole bike (Including Battery)
68 kg
Maximum load
120 kg
Wheels & Tyres
Hubs
Forged and CNC aluminium hubs.
Rims
F 19"/ R 18" re-inforced 7050 aluminium.
Tyres
F CST 70/100-19, R CST 90/100-18 MX tyres for maximum grip off road.
